Which is better for a dental training lab: an electric or a manual dental simulator? Choose by the positioning work your teaching sessions require. A manual station can be a suitable choice when students and staff can set and secure the phantom head by hand for the planned exercises. An electric station is worth evaluating when powered repositioning or a model-specific repeatable position function is part of the workflow. Compare the complete quoted station, not the word “electric” or “manual” alone.
Both types can support preclinical practice. They differ in how the simulated patient is positioned and in the functions included with a particular model. This guide gives dental schools and training centres a way to compare those differences before selecting equipment.
In this comparison, the terms describe how the phantom-head or simulation section is repositioned. They do not, by themselves, define the instruments, teaching software or number of students a station supports.
For example, the JG-A5 manual single-student workbench lists a lamp, handpieces, foot control, suction and water bottles in its standard configuration. “Manual” therefore does not mean that the whole station needs no electrical or other utility connections. The JG-A5+ manual workbench also has a phantom head that moves along a height-adjustable rail and can be stored within the workstation.
On the electric side, the JG-A1 lists an electric movable phantom-head section, along with a timer and skills-assessment function. The JG-A15-2 specifies synchronized electric movement of the head and equipment system, two saved positions and a one-button reset. Those controls are model-specific features; they should not be assumed for every electric simulator.
| Decision point | Manual station: what to check | Electric station: what to check |
|---|---|---|
| Head positioning | Can a learner set, lock and repeat the required height and angle by hand? | Which section moves under power, through what range, and how is it controlled? |
| Repeatable setup | Can instructors define a position with a visual mark or setup procedure? | Does the exact model include saved positions or reset, and do those functions fit the exercise? |
| Student workflow | How often must students adjust the head during one session? | Would powered changes serve a documented teaching or assessment need? |
| Included equipment | Confirm the quoted lamp, instruments, typodont, suction and accessories. | Confirm the same baseline; separate standard items from optional teaching modules. |
| Room and support | Confirm the actual footprint, utilities, adjustment mechanism and service parts. | Confirm those items plus the electrical supply and support for powered movement. |
The practical test is to place the exact head and typodont in the positions used by your curriculum. Ask a student and instructor to move between those positions, operate the instruments and restore the station for the next learner. A specification sheet cannot show whether that sequence works comfortably in your room.
Consider a manual model when the curriculum calls for core individual practice and a simple, stable positioning routine is adequate. A workbench such as JG-A5 provides one phantom head and a standard instrument package for one learner. JG-A5+ is a different manual option when a height-adjustable, storable head is useful for the planned bench layout.

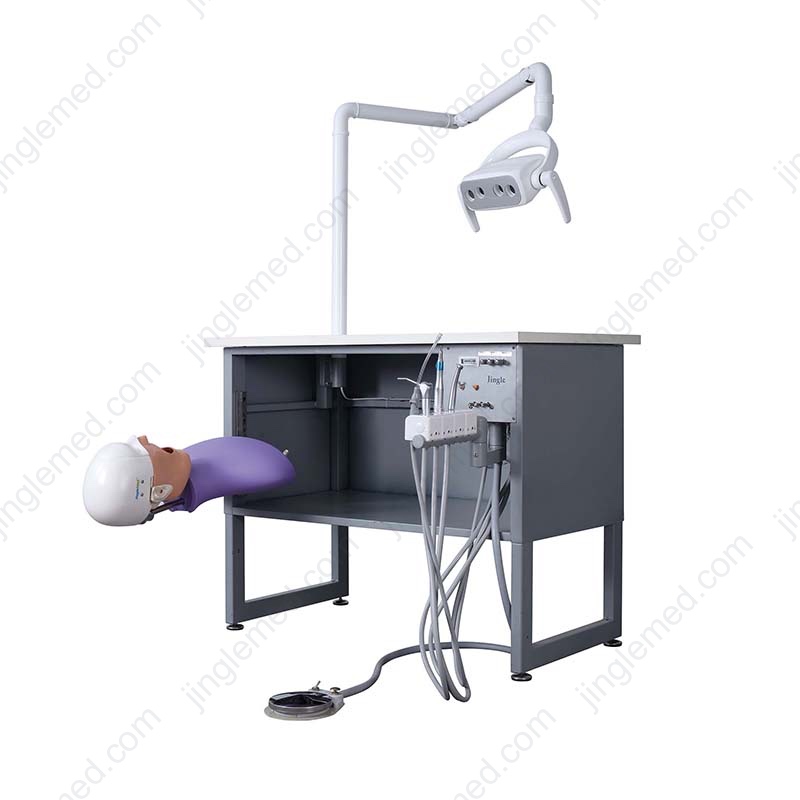

Manual example: JG-A5+ with an adjustable, storable phantom head.
Manual does not mean one fixed height or one type of mounting. Compare the actual adjustment and locking method, the working range, and the time needed to reset the station between sessions. If the teaching team requires a narrowly repeatable patient position, document how it will be set and checked on the proposed manual model.
Evaluate electric positioning when a lesson repeatedly changes simulated patient position, or when the same defined setup must be restored across learners or assessments. The JG-A1 is an example with electric head positioning and its own timer and assessment tools. The JG-A15-2 is an example with synchronized movement and two memory positions. They demonstrate that “electric” covers different mechanisms and teaching functions.

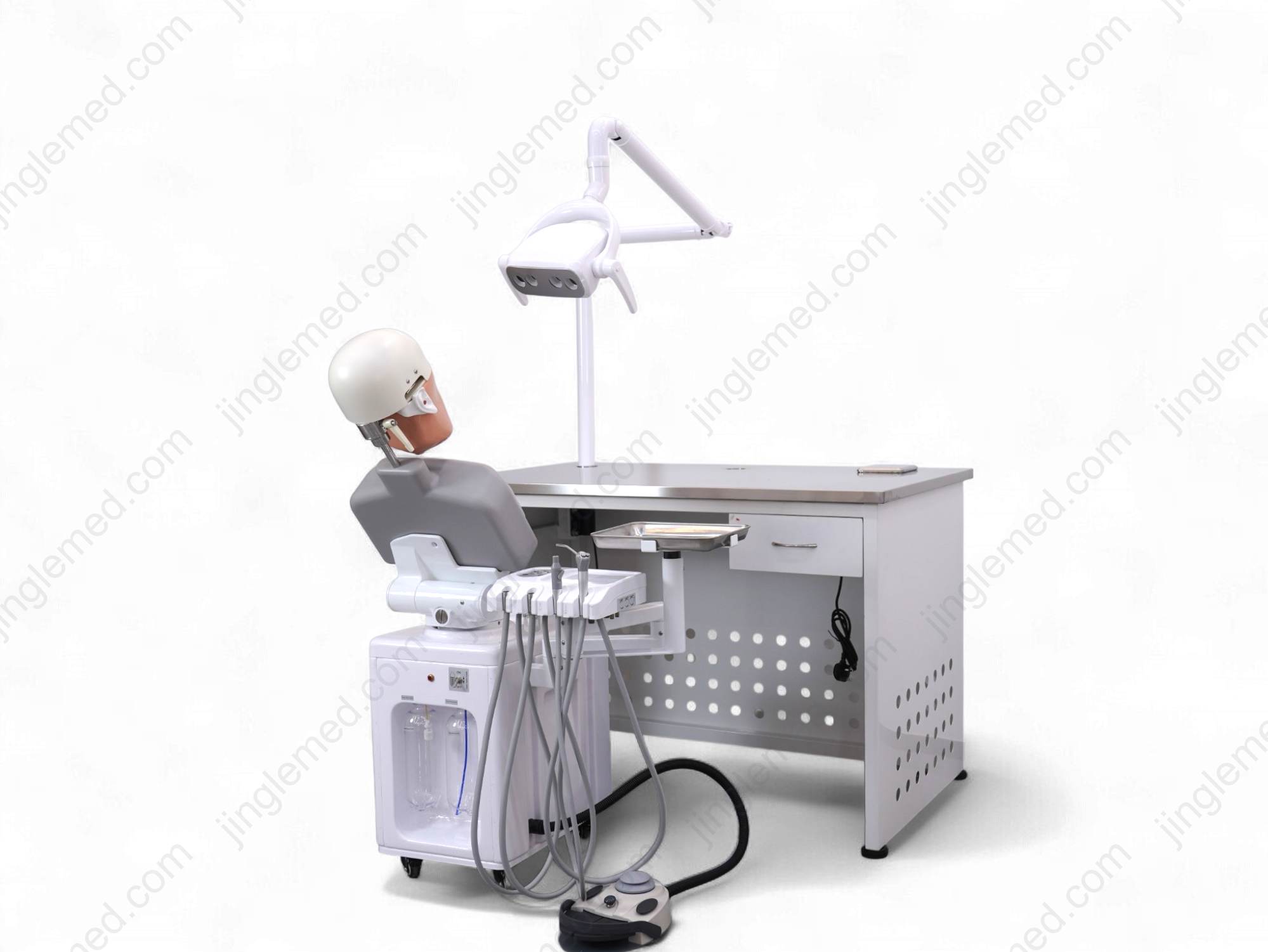

Electric example: JG-A1 with an electric movable phantom-head section.
Specify the movement you need before requesting a model. Does only the phantom head move, or do the head and instrument system move together? Are saved positions needed? Is a timer, camera or recording function part of the approved teaching method? Request a demonstration of the exact quoted configuration. Do not treat optional modules or functions from one model as standard on another.
A useful quotation comparison starts with the same teaching requirement and the same number of independent practice positions. The previous guide, How Many Dental Simulators Does a Dental School Need?, shows how to determine that count from the busiest practical session. Once the count is agreed, ask suppliers to identify the following for each proposed model:
Keep the quote for a basic manual station separate from one for an electric station with extra teaching modules. For a broader cost framework, see the dental simulator price guide. This article makes no claim that one control type always has a lower purchase price or lifetime cost.
Complete one row for each teaching activity. If the same room serves several modules, compare their highest compatible requirement rather than buying a feature solely because it is available.
| Requirement to confirm | Your lab | Evidence to request |
|---|---|---|
| Exercise and required patient positions | ________ | Curriculum plus movement demonstration |
| Repositioning or reset frequency | ________ | Observed session workflow |
| Manual adjustment or powered movement needed | ________ | Exact model control specification |
| Memory positions or assessment tools needed | ________ | Standard-versus-optional list |
| Independent positions and unit count | ________ | Approved timetable and head count |
| Utilities, layout and service support | ________ | Room plan, model drawing and service terms |
The simulator mounting guide can help the room team compare fixed and movable formats. Mounting and power-assisted positioning are separate choices: a model's actual specification determines how they combine.
No such conclusion follows from “manual.” The word refers here to positioning. A manual model may still include a lamp, handpieces and other components with utility requirements. Check the exact configuration and installation guide.
Yes. JG-A5+ lists a height-adjustable rail. Confirm the working range and locking method on the model proposed for your lab.
No. The JG-A15-2 product page specifies two memory positions and one-button reset. Request the feature list for any other electric model rather than assuming it has the same controls.
Assessment depends on the approved exercise and the tools included in the exact model. JG-A1 lists a timer and skills-assessment function; electric movement alone does not establish those functions.
Yes, if different activities justify different station configurations. Plan the timetable, operator positions and utilities for each area, then document which exercises each station type can support.
Send Jinglemed your curriculum, required practice positions, room plan and utility details. We can compare a manual and an electric configuration with the standard and optional items listed separately.
Request a Model Comparison & Quote →Or browse the dental simulator range.
